| Motovario Gearboxes

NET are the official service and repair centre for Motovario Gearboxes.

We have the experience, capacity and support to service or repair any Motovario unit. Holding large stocks of service kits enables us to repair your unit quickly & effectively. New units are also available ex-Stock.

motovario gearboxes

Helical Units & Geared Motors
Over 30 sizes available with rating from 0.12kw to 45kw
Ratios from 1.2:1 to 350:1 or combinations possible
Case hardened & profile ground gears
Input to accept any standard IEC motor
Designed with Euro foot print dimensions
Single, Double or Triple reductions

variator gearbox

Variators
7 Sizes with power from 0.15kw to 9.2kw
Size 03 to 100
5:1 or infinitely variable
Foot or flanged mounted versions
Inline or right angled combinations possible
Hollow bore or solid shaft versions
Silent, vibration-free running
High efficiency
Bidirectional rotation
Control hand wheel position able on either side
Input to accept any standard IEC motor

NMRV gearbox

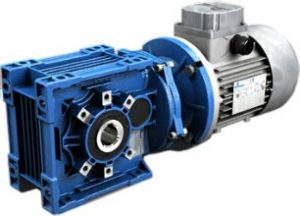

Worm Reduction Units
10 Sizes with power 0.06kw to 15kw
Reduction Ratios between 5:1 and 1000:1
Foot & flange mounted versions
Hollow bore or solid shaft versions
NMRV series with patented module universal mounting casing
SW series with round body casing
Input to accept any standard IEC motor
Torque limiter option available
