NET can offer the customer a large range of gears to suit most requirements.

We can manufacture; racks, spur gears, splines, bevel gears, sprockets, helical gears, worm & worm wheels, and keywaying. We have the capacity for manufacturing complete, or gear cutting from components supplied.

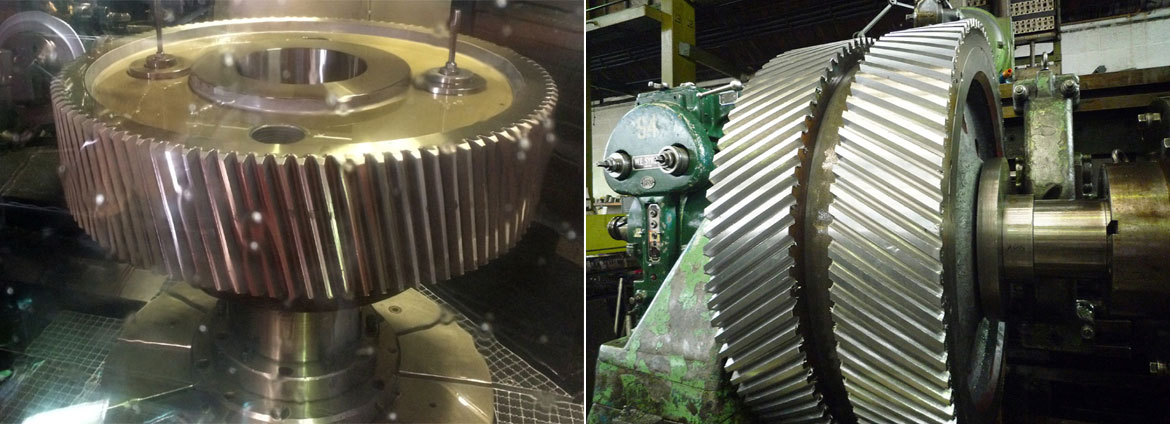

gear cutting

Worm & Wheels

  • Various machines with sets mating up to 32″ centres

Gear Hobbing

  • One – Modul 3150 (capacity extended to 4250mm dia x 30 MOD) with single indexing and internal cutting head capabilities
  • One – Modul ZFWZ 200/3 – which has 2 cut cycle, single index and crowning facilities, capable of cutting gears up to 2 metre dia. x 800mm face up to 25 MOD
  • One – ZFW10 Precision Gear Hobber, producing gears up to DIN grade 6 and up to 16 MOD, 1500mm dia. x 1000m face width. Equipped to barrel hob and single index
  • One – Pfauter P900 (max 900mm x 16 MOD)
  • One – Modul ZFWZ 800 (mas 900mm x 16 MOD)
  • One – Pfauter P630 (2 cut cycle & crowning max 630mm x 10 MOD)
  • One- Pfauter P400 (400mm x 10MOD)
  • One Tos 71 (750mm x 10 MOD)
  • One – Liebherr ET 1200 (1250mm x 32 MOD)
  • One Heckert ZFWVG (250mm dia x 2 metre x 8 MOD)
  • One Heckert GFLV (250mm dia x 3 metre x 8 MOD)

Bevel Gears

  • One – G & E 60S2 Bevel Gear Rougher
  • Seven – 24A Gleason Coniflex Bevel Generator (900mm dia x 25MOD)
  • One – 154 Gleason Bevel Planer (max 1500mm dia x 40 MOD)
  • Three – 54 Bevel Planer (max 150mm dia x 40 MOD)
  • One – 12″ Gleason straight Bevel Generator (max 600mm dia x 8 MOD)
    One – 28″ Hypoid Gear Generator
  • One – G & E 60B

Gear Shaping

  • One – Sykes 5E (1500mm x 16 MOD) equipped with straight & 30 degree double helical guides
  • Two – Sykes 3C (1000mm x 10 MOD) equipped with straight & 30 30 degree double helical guides
  • One – Drummond Maxicut 3A
  • One – Drummond Maxicut 2A
  • One – MAAg 8H 180/300 (300mm x 32 MOD) max face width 450 (equipped with STD internal & oblique cutting heads)
  • One – Sunderland 16 (800mm x 14 MOD)
